Artec T18AR USB TV Tuner
with QAM Tuner



Features of the Artec T18AR:

  • Digital TV/ Cable Digital TV(QAM)
  • USB2.0 High Speed Interface Designed for HDTV
  • Supports Unencrypted Digital Cable (Clear QAM-Supports up to 256QAM)
  • Real Time Digital Video Recording
  • Schedule Recording
  • Aspect Ratio 4:3, 5:4, 16:9, Auto detect window and Stretch to window
  • EPG (Electronic Program Guide)
  • Time-Shifting
  • MTS (SAP, secondary audio program)
  • PIP (Picture in Picture)
  • Snapshot (JPG, BMP, TIF and PNG Format)
  • Closed Caption
  • Automatic Channel Scanning
  • Keyboard hotkeys
  • Fast Forward/ Fast Rewind
  • Scalable Screen for Multi-task or Full Screen View
  • With remote control support MCE
  • Free Air-to-Air Digital Terrestrial TV and Audio Program Playing
  • Mini Portable Device without Extra Power Required
  • Compatible with Windows XP, XP Media Center Edition (MCE), Vista 32/64 bit


System Requirements:
  • Microsoft Windows XP/MCE/Vista 32/64 bit
  • Desktop or Notebook Computer (One USB 2.0 Port)
  • P3 1.0 GHZ Desktop or Pentium Mobile 1.2 GHz or above
  • 256M RAM or above
  • VGA Card with at the least 32MB Memory
  • Sound Card or On-board Sound Chip
  • Microsoft Direct X 9.0b or above
  • Digital Terrestrial TV Antenna (Included in Package)
    		•

    HDTV and PIP Function:
  • P4 3.0 GHz CPU or above
  • 512M RAM or above (Vista System 1G RAM or above)
    		•
  • VGA card with at least 128MB memory
    		•

    Tuner:
  • Input Terminal: 75 Ohm Male F Connector
  • Receiving Frequency: 42 ~ 862 MHz
    		•

    Digital Cable:
    Unencrypted Digital Cable (Clear QAM-Supports up to 256QAM)

    8VSB De-Modulator:
  • Fully ATSC Compliant
  • ATSC A/53 compliant 8/16VSB
  • Integrated 10-bit A/D converter
  • All digital demodulation
    		•

    Forward Error Correction (FEC):
  • Fully ATSC Compliant
  • Bandwidth: 6 MHz
    		•

    DTV A/V Format:
  • Video format: MPEG-II Main Profile & Main Level
  • Audio format: MPEG-II Audio layer I & II, Dolby Digital AC-3
  • Video Resolution: Standard SDTV and HDTV
    		•

    EM/Safety:
     FCC
    Power Consumption:
    Less Than (<) 2.3W

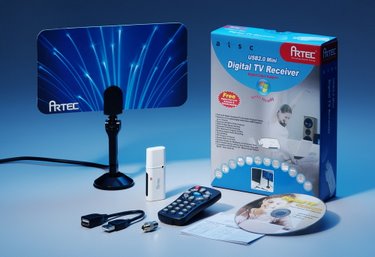

    Package Includes:
  • T18AR ATSC Digital TV Receiver x 1
  • Portable Digital Terrestrial TV Antenna x1
  • Remote Control x 1
  • Adapter for Roof TOP TV Antenna x 1
  • Extension USB Cable x 1
  • Installation CD x 1
  • Quick Installation Guide x 1
    		•

    Dimensions:
    Body Size: 71.2(L) X 28.1(W) X 13.3 (H) mm
